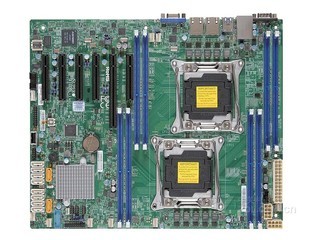

X10DRH-I

1 PCI-E 3.0 x16,

6 PCI-E 3.0 x8

128Mb SPI Flash EEPROM with AMI BIOS

Plug and Play (PnP)

PCI 2.3

ACPI 1.0 / 2.0 / 3.0 / 4.0

USB Keyboard support

SMBIOS 2.7.1

UEFI 2.3.1

Intel? Node Manager, IPMI2.0, NMI, SPM, SUM, SuperDoctor? 5, Watchdog

ACPI Power Management

Power-on mode for AC power recovery

+1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT

8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI

CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC

10°C - 35°C (50°F - 95°F)

-40°C - 70°C (-40°F - 158°F)

8% - 90% (non-condensing)

5% - 95% (non-condensing)

E-ATX

12" x 13" (30.48cm x 33.02cm)

Intel? Xeon? processor E5-2600 v3, Intel? Xeon? processor E5-2600 v4.

Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W

Up to 22 cores ? / Up to 55MB? cache

? BIOS version 2.0 or above is required

** Motherboard supports this maximum TDP. Please verify your system can thermally support.

1TB Registered ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB

LRDIMM: 32GB, 64GB

3DS LRDIMM: 128GB

1.2V

Corrects single-bit errors

Intel? C612

Intel? C612 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

SATA3 (6Gbps); RAID 0, 1, 5, 10

SATA3 (6Gbps); RAID 0, 1, 5, 10

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Dual LAN with Intel? i350 Gigabit Ethernet Controller
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
