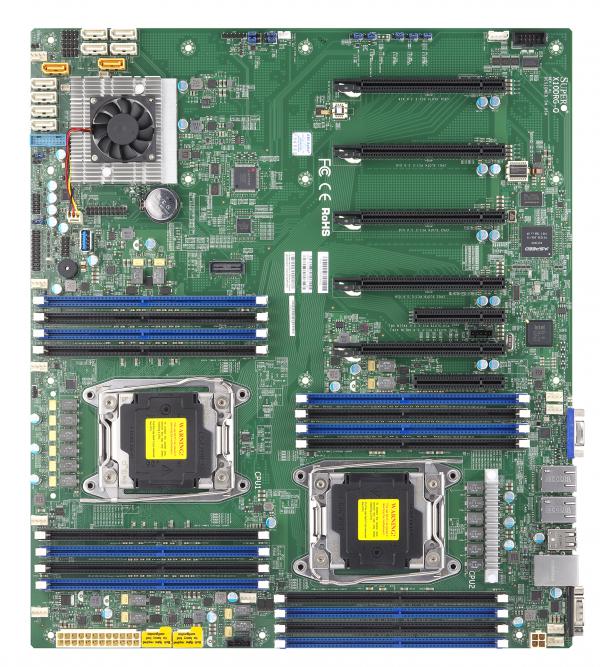

X10DRG-Q

Proprietary

15.2" x 13.2" (38.61cm x 33.53cm)

Intel? Xeon? processor E5-2600 v3, Intel? Xeon? processor E5-2600 v4.

Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s

Up to 22 cores ? / Up to 55MB? cache

? BIOS version 2.0 or above is required

** Motherboard supports this maximum TDP. Please verify your system can thermally support.

16x 288-pin DDR4 DIMM slots ,

Up to 2TB? ECC 3DS LRDIMM, 1TB ECC RDIMM

2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB

LRDIMM: 32GB, 64GB

3DS LRDIMM: 128GB

1.2V

Corrects single-bit errors

Intel? C612

RAID 0,1,5,10

Intel? C612 controller for 6 SATA3 (6 Gbps) ports;

SATA3 (6Gbps); RAID 0, 1, 5, 10

SATA3 (6Gbps); RAID 0, 1, 5, 10

Support for Intelligent Platform Management Interface v.2.0

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

ASPEED AST2400 BMC

Dual LAN with Intel? i350 Gigabit Ethernet Controller
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

HD Audio with optical S/PDIF

Aspeed AST2400 BMC

10 SATA3 (6Gbps) port

1 RJ45 Gigabit Ethernet LAN ports

2 RJ45 Gigabit Ethernet LAN ports

4 USB 2.0 ports (2 rear + 2 headers)

5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)

1 VGA port

2 COM Ports (1 rear, 1 header)

1 TPM Header

Thunderbolt AOC Header
